The Toolbar:
•Clear Results removes all results for the current page
•Copy L » R copies all result from the left ear to the right ear
•Analyse compares the latencies and inter-peak intervals for each ear against the norms entered in Tools|Options|ABR & ECoG Norms and generates a comment
•Print Analysis will print a report including just the ABR results; use the Full Report format if you want to automatically include the ABR analysis with the standard audiometry report
The Word Processing functions on the toolbar are explained in the Editor topic

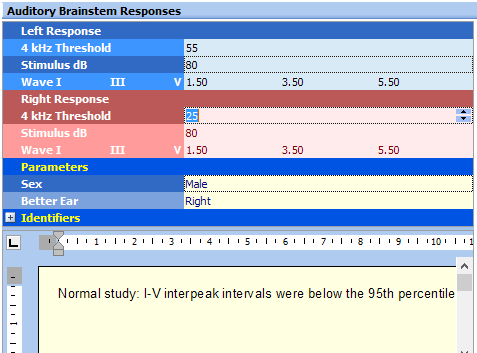

The Work Area:
1.Press Ctrl+Insert on the keyboard, or click Edit on the work area toolbar
2.Directly key results into the table
3.Press Ctrl+S on the keyboard, or click Save Changes on the work area toolbar
Analysis is based on normative data entered in Tools|Options|ABR & ECoG Norms. The default norms used by HearAid are those used at Goulburn Valley Health, which were collected using a Bio-Logic® Navigator with these test parameters:
•Alternating polarity click stimuli presented at 80 dBnHL
•Click rate 11 Hz
•High Pass filter 300 Hz
•Low Pass filter 3 kHz
•A single pass of the post-hoc digital filter
• Insert earphones
If your ABR recordings are made with any other test equipment or parameters you MUST enter your own norms!
•Click the Print Analysis button to generate an ABR report
Disclaimer:
•The ABR analysis will have no validity unless you have entered norms in Tools|Options|ABR & ECoG Norms
•The ABR analysis function is not intended to replace audiological clinical judgment and analysis! You use this function at your own risk and HearSoft Pty Ltd accepts no liability or responsibility for diagnostic judgments made on the basis of the analysis results.
